The Forced Exercise / Walking Wheel System for Mice is designed to offer flexibility in conducting paradigms such as sleep deprivation and forced exercise. The sturdy exercise / walking bed will support up to 10 Mouse Exercise / Walking Wheels Model 80801 (sold separately) and incorporates a durable removable stainless steel waste pan. The bed provides individual tracks with cushioned non-slip grips for each wheel. The 80801 wheels incorporate a swing-hatch for easy animal loading and removal.

The hand held LCD interface allows the user to set a single exercise / walking speed, exercise time, rest time, and number of cycles.  A built in USB interface may be connected to a Microsoft Windows computer running optional Model 86165 Scurry Activity Software for complete flexibility of speeds, times, and other aspects of scheduled exercise.

PsymCon Control

Specifications:

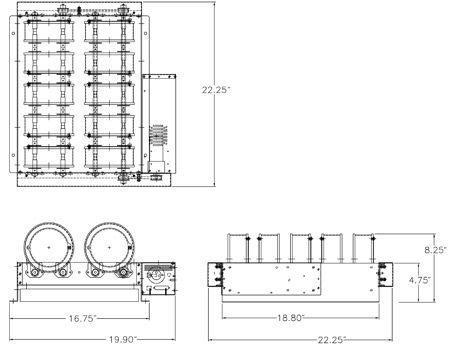

Bed Specifications
  • Power: 15VDC, 2.0A Power Pack (included)
  • Line Voltage: 110/115 V AC @ 60 Hz
  • Dimensions: 19.25" x 22.25" x 10.875" (with wheels)
  • Weight: 18.7lbs. (empty), 26.2lbs. (with 10 wheels)
  • 80801 Wheel Diameter: 5.94" ID (sold separately)
  • Wheel Width: 2.25" ID
  • Run Distance: 0.47 meters/revolution
  • Speed Range:
    • 0.9 to 11.4 meters/minute standard
    • 0.1 m/min increments
  • Exercise Time Range: 1 minute - 24 hrs
  • Rest Time Range: 1 minute - 24 hrs
  • Cycles: 1 - 999, Continuous
