Lafayette Instrument Company’s newest edition to the operant conditioning test chamber line features a reduced floor area to facilitate training mice on operant tasks. The unit boasts many of the same features found in the standard rat modular test chambers. A stainless steel grid rod floor is supplied standard with this chamber. The same chamber with non-shock perforated stainless steel floor is also available. See Model 80015NS for details.
Note: Model 80015 is for the chamber and grid floor only. It does not include chamber accessories, control, or power supply. These items should be ordered separately as needed. Lafayette Instrument Company will be happy to assist with the design of a complete test system.
Specifications:
Materials
- Grid Rods and Pan: Stainless Steel
- Door, Back and Top: Polycarbonate
- Channel Supports: Clear PVC and Stainless Steel
- Filler Panels: Anodized Aluminum
- Base Easily cleaned 3/8" (9.53mm) matte-textured non-toxic polymer
Dimensions:
- Overall:
- L: 19.25" (48.0 cm)
- D: 10.61" (26.95 cm)
- H:10.5" (27.67 cm)
- Animal Workspace
- L: 7.375" (18.7 cm)
- D: 8.125" (20.3 cm)
- H: 7.9" (20.64 cm)
* Note: Some modular components extend above the top of the test chamber
Optional Accessories

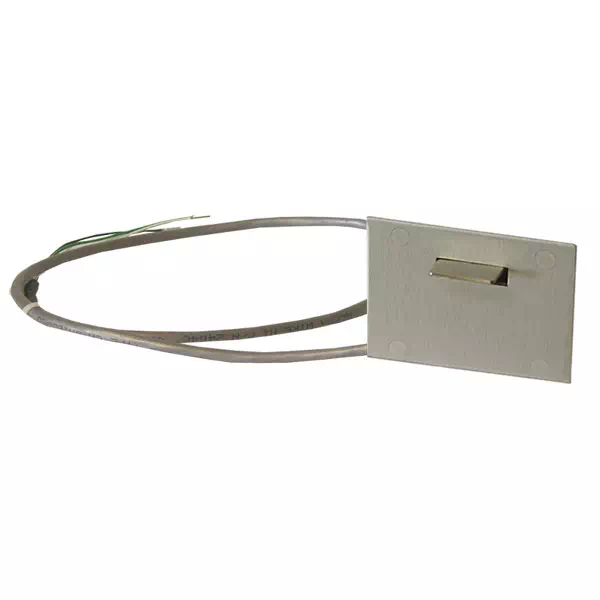

Standard Response Lever for Mouse Modular Chamber
Standard Response Lever for Mouse Modular Test Chamber, Model 80015 or 80015NS.
View Details

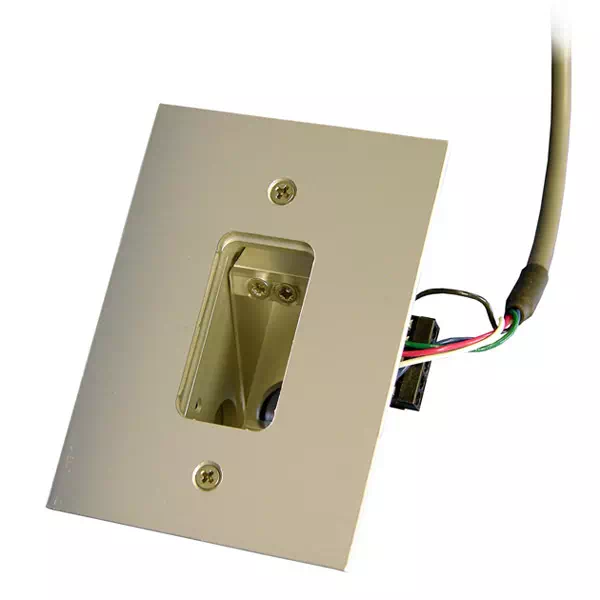

Retractable Mouse Response Lever
A deluxe retractable lever for the 80015 and 80015NS Modular Test Chambers.
View Details

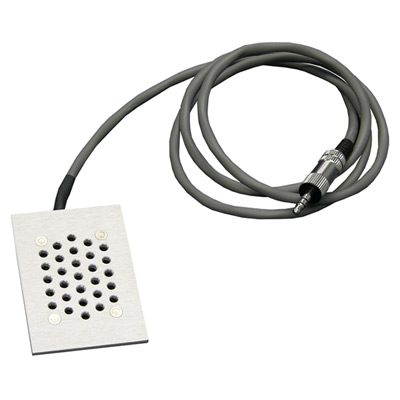

Speaker Panel for Mouse Modular Test Chamber
This speaker module may be used with any 80015 Series Mouse Modular Test Chamber.
View Details

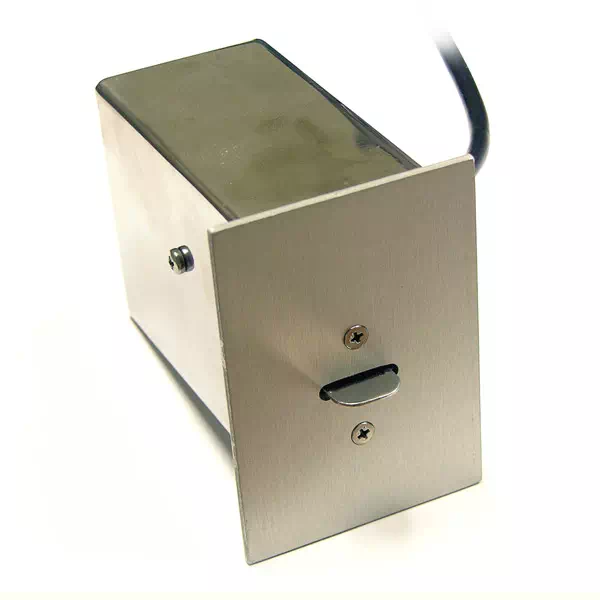

Mice Reward Area for Modular Test Chamber
Reward trough sized for mouse report by door or head entry photobeam with pellet and dual liquid reward for 80014 and 80015 modular chambers.
View Details

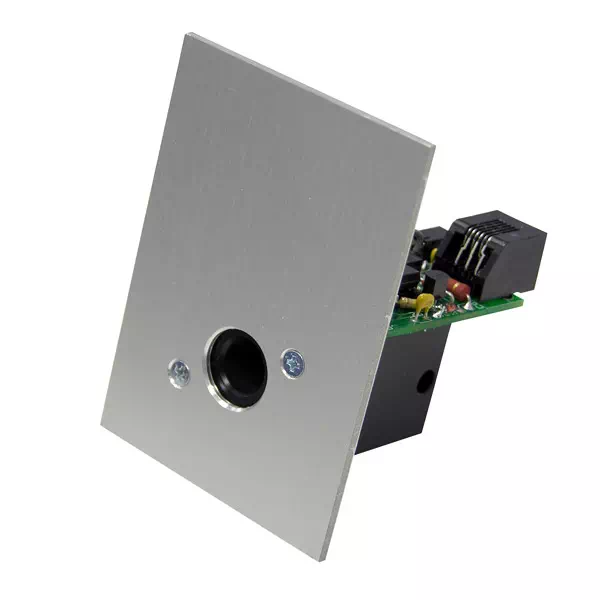

Nosepoke with Tri-Color Light on Mouse Modular Panel
A 4U Mouse Modular Panel with Mouse Nose Poke including I/R sensor and open back.
View Details

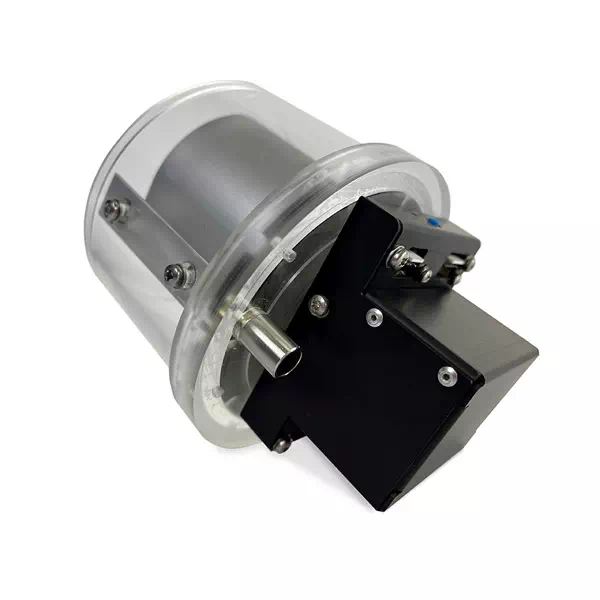

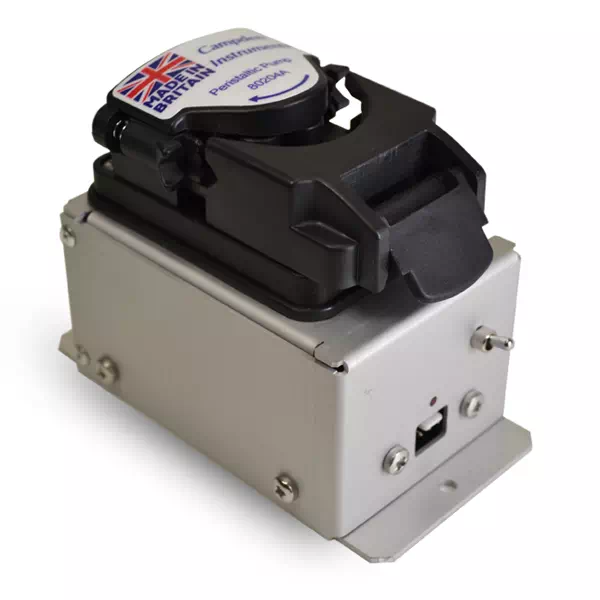

Precision Liquid Feed Pump
The rate of flow for the Precision Liquid Feed Pump is been calibrated to give precise delivery of liquids at delivery rates suitable for rewarding mouse, rat, and primate.
View DetailsRelated Products

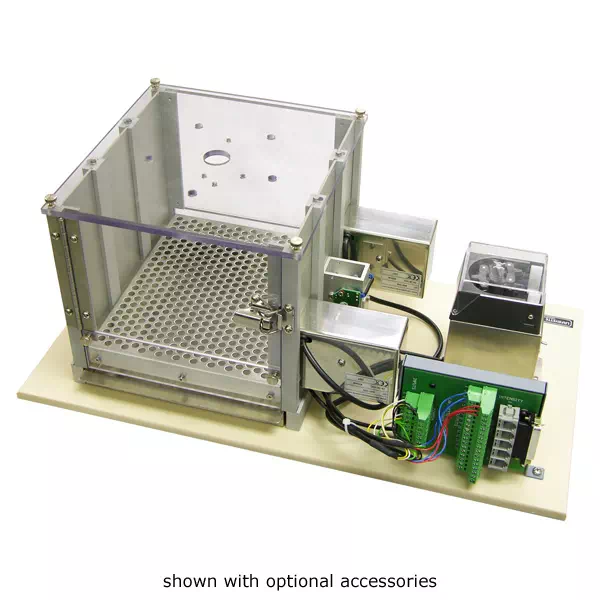

Mouse Modular Test Chamber – NS
Featuring the high quality design, material and construction details as the standard rat modular chambers except smaller in size. Comes equipped with a perforated stainless steel non-shock floor.
View Details
