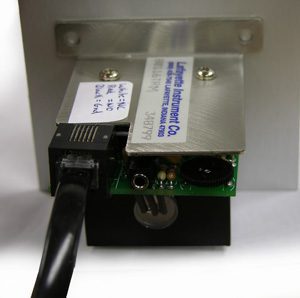

Two cables are provided with this unit. A 6 pin modular connector establishes contact with +28 VDC and three sequential outputs on either an 81408 or 81409 I/O Connection Block. This connection is in parallel with the individual terminal screws. The second cable establishes contact with ground and two input lines for both NO and NC response signals.
Specifications:
Power: +28VDC input
Photocell Output: Active low (NO and NC)
Computer control: 3 bit word (active low (Logic 0) turns each control line ON)
