Specifications:
- Frame Diameter: 41.0 x 71.0 mm
- Frame Depth: 25.1 mm
- Material - Cone/Frame: Paper / Metal
- Magnet Type: Rare Earth
- Rated Power (Watts): Nom. / Max: 3.00 / 5.00
- Voice Coil Impedance: 8 ± 15% @1.0Khz
- Resonant Frequency (Hz) Without Baffle: 250 ± 20%

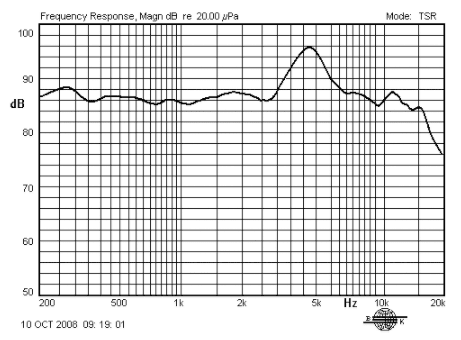

- Frequency Response (Hz): Fo ~ 20000
- Output Sound Pressure Level (Spl): 86 ± 3 dB
- Measured At: 1.0 W @ 0.5 M
- Mean Value At: 0.8,1.0,1.2, 1.5Khz
- Operation (Must Be Normal): Program Source
- Buzz & Rattles (Must Be Normal): Sine Wave 1.26 V
- Distortion @ Rated Power Input): 5% Max @ 1Khz, 1W
- Load Test (White Noise): 2 W @ 8 Hours
- Humidity Test: 40° ± 2°C 90~95 RH
- Heat Test: 70° ± 2°C 50% RH
- Outside Diameter Of Yoke Seat (mm): 22.0 - Voice Coil
- Outside Diameter (Eliminate Rim): 35.0 x 64.0
- Baffle Opening (Mm): 35.0 x 64.0
- Thickness Of Rim (Mm): 2.8 ± 0.5
- Net Weight (Ounces/Grams): 1.90 / 38.0
